This Integrated Video Recorder include multiple func-
tons, such as Continuous Video Recording, Motion detect
Recording,Mixing Recording and Audio Recording,the
Built-In High-Capacity Lithium battery is able to support
the mainframe run-ning long time even without the power.
It is an ideal choose for the users with small size, powerful
function, reasonable price and it is easy to install and operate.
I. Product features:
1. As a new R&D product, it can intelligently take video and save the file.
2. Simple installation, no need for wiring. It can start to work independently as soon as the
power is on.
3. Imbedded high capacity lithium cell ensures a long working time when there is a power
break.
4. Upgradable TF card that allows the user to choose according to their own needs to for best
theft-proof homes and project implementation.
5. Its TV-OUT function enables the user for real-time monitoring.
6. It can work 24 hours a day. Infrared camera works in the evening within a 15 meter effective
range.
7. Its system adopts ARM9 technology, high quality IC and the latest mobility detecting and
contracting technology. It saves a file every 30 minutes, optimizing the memory capacity.
8. A green product. It saves power and is environment friendly.

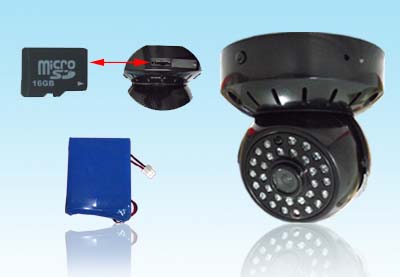

Ⅱ．Product image：
| Local storage |
Loop recording |
Sound recording |
| AVI file layout |
Video Format：VGA/QVGA |
Replay |
| MAX TF suport 32GB |
Intrared night vision function |
TV-OUT |
Ⅲ.Suit place：
This product is suitable to install differentplace,such as villas dwelling hous store,hotelssm-
allmarkets,convenient stores,chain-stores,storehouse offices,financial affair offices,moble
station,ect.
Ⅳ.Related parameters：
| CPU |
ARM9 32-bit Microprocessor core |
| Coding |
MJEPG |
| Video out |
1.0VP-P（75Ω） |
| AV format |
VGA:640X480/QVGA:320X240 |
| Lens |
3.6mm/4mm/6mm/8mm |
| Video specs |
300.000 resolution，1/4"COMS video sensor |
| Control Mode |
Telecontroller,Spacious Distsnce 10m |
| Player Software |
Windows Media Player |
| Upgradable memory |
TF:128M-32G( Kinston high-speed card recommended) |
| Video length |
4GB:Up to 24 hours |
| Infrared |
29infrared lights,5-15 meter range in the evening |
| Clock synchronizing |
It supports clock synchronizing |
| Cell capacity |
1500mA |
| D C power |
Input:AC220/110V,Output:DC13.5V/1500mA |
