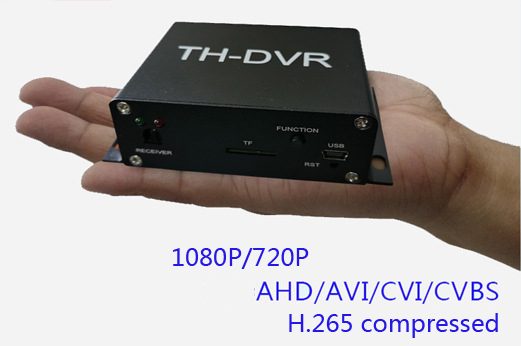

This TH-DVR is a new model of security product that
features duel card high capacity memory, H.265 compress-
ed and 720P/1080P etc.This product is applicable in differ-
ent places,such as dwelling houses,stores, hotels, small-
markets, storehouse, offices, financial affair offices, BTS
stations, etc.
Product features
Three kinds ofhigh definition AHD/TVI/CVI and CVBS automatic identification.
H.265/H.264compressed.
Support 1080P/720P
The maximumsupport for single card is 128G.
DC5-35V/1A,widelyused.
It can do videocamera recording seamlessly without a single second of missing.
Imbed watch-dogprogram,so that if there is system lock,it will restart to enhance usability.
Technical parameters

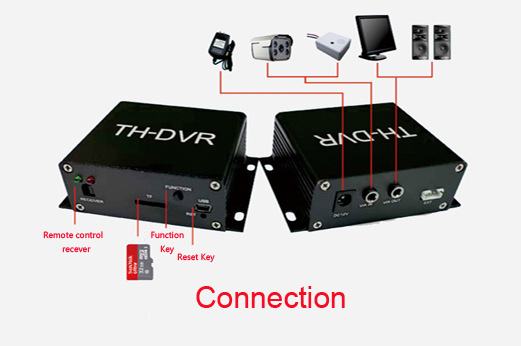

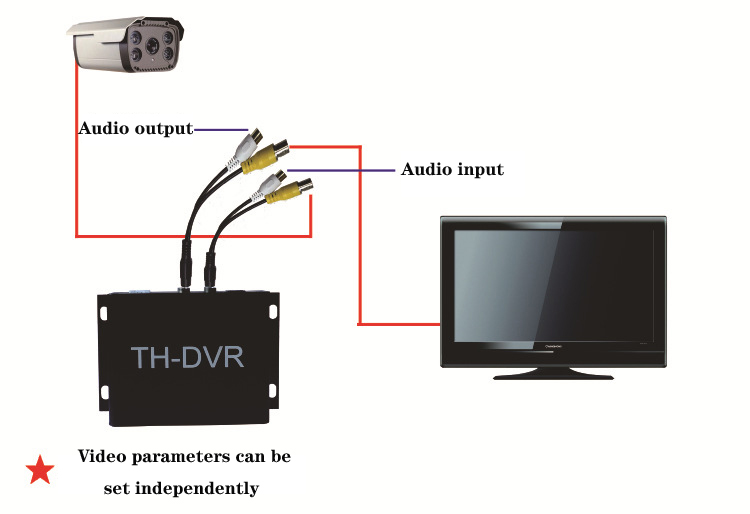

Input/Output One channel video and one channel audio
Compressed form H.265/H.264Compressed
Video OutputFormat NTSC/PAL

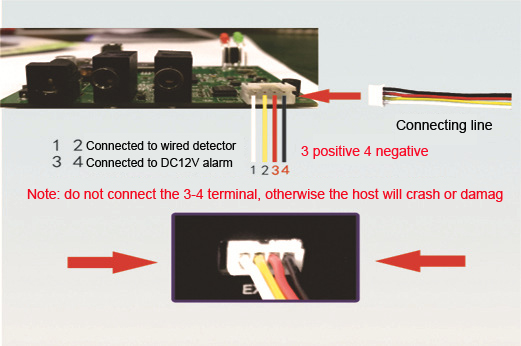

Recording Function Continuous,Motion detect, Alarm andTriggered
Resolution 720P/1080P
Menu settings Operate with remote control , effectivewithin 5 meters
Menu Display 10 languages: traditional Chinese/simplifiedChinese/English etc
USB interface Connect with computer to read date ,SupportUSB DC 5Vpower
Support(Storage) Support 128GB (formatting first by itself)
Power DC5V-35V/1A
MINI DVR Applications in Engineering

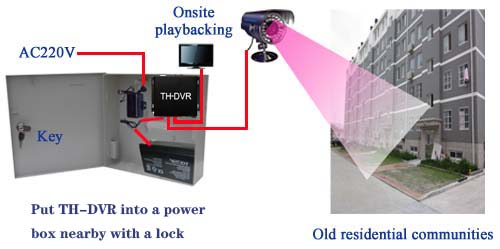

1.Places where wiring is difficult, such as old residential communities, or isolated commu-nities to
be rebuilt where theft is common.
In many cities where there are quite many old residential communities or isolated commun-
ities to be rebuilt where city planning is absent, residents are temporary tenants, and theft is
common, it is a headache for the police because direct evidence of crime is often hard to
get. It is necessary to install a monitoring system, however, the wiring is very complicated
and costly without monitoring system originally being planned.
TH-DVR is suitable for application in such places—without long distance wiring, it only
takes installing a camera by gates or where crimes are prone to happen etc. and a power
control box nearby (can be tailor made) with a lock. When any crime happens, one can just
take out the TF card, replay the video and find evidence. It omits complicated wiring
engineering, offers a much lower cost, and can decrease thefts.
2. Portable equipment, convenient and flexible installation.
The Micro camera is of small size, easy to insert or take out memory cards, and can be
fixed as a portable video camera, to be applied in some temporary cases.

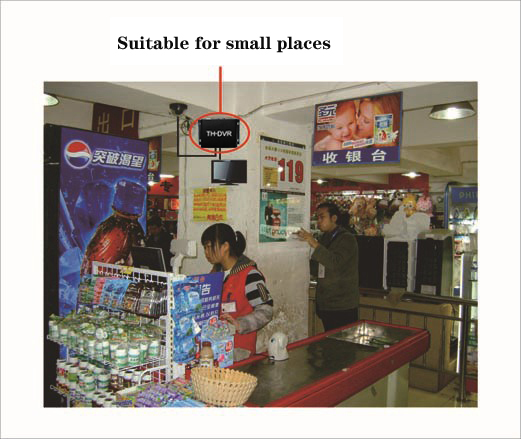

3.Small areas that needs monitoring, such as convenience stores, casher
counters, cars etc.
Casher Counters

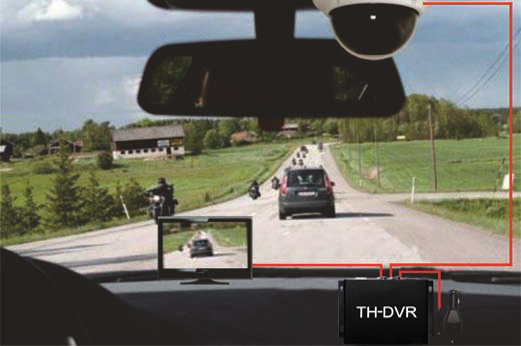

Cars
In such small areas where one or two cameras can meet the monitoring demand, if tradit-
ional hard disk video cameras are installed, the cost would be high ( bear in mind that a hard
disc would cost several hundred RMB), TH-DVR can be applied.
4.For places where there are already a whole set of monitoring system installed, there
are still two occasions in which TH-DVR can be used：
A.The back end system has no more video-in interfaces. It would be costly to purchase a
whole set of system just for one or two monitoring spots. TH-DVR could reduce the cost.

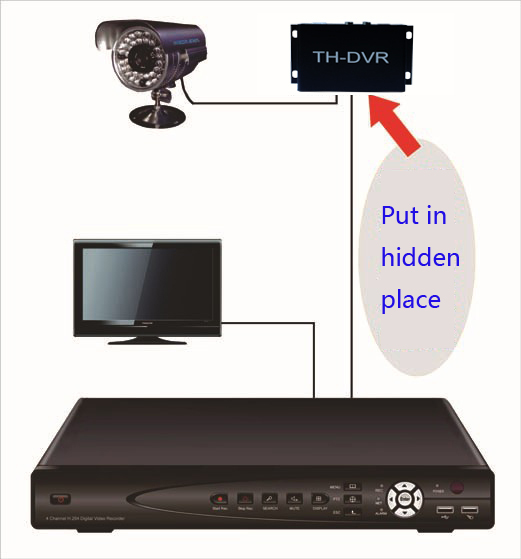

B.For important spots that are already connected to DVR(hard disc recorder), the TH-DVR
can be installed in the system stealthily far from DVR(hard disc recorder)to double
guarantee data safety. (e.g. some insider persons may delete the video on purpose, or it
may be destroyed or stolen). TH-DVR can still provide video evidence for future use.(For
Occasion B, it is already applied in many places with good user feedback)

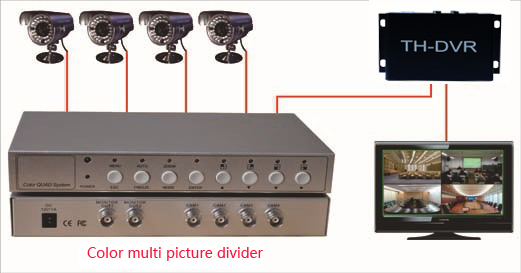

5.For some places where it is not strictly required for monitoring safety, TH-DVR
and multi-screen divider can substitute traditional hard disc video recorder, and
reduce cost greatly.
